520153

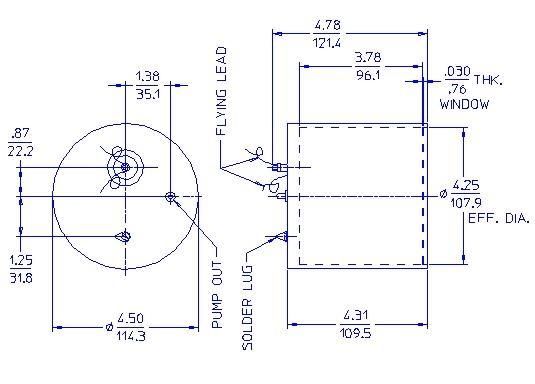

GENERAL SPECIFICATIONS

MAXIMUM LENGTH (INCH/MM) 4.78/121.4
MAXIMUM DIAMETER (INCH/MM) 4.5/114.3
EFFECTIVE LENGTH (INCH/MM) 3.78/96.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
FILL GAS Xenon
FILL PRESSURE (TORR) 3800
ANODE CONNECTOR Threaded Pin
CATHODE CONNECTOR Solder Pin
GUARD CONNECTOR Solder Pin
STORAGE TEMPERATURE RANGE (°C) -40 to +100
MINIMUM SHELF LIFE (YEARS) 2

WINDOW SPECIFICATIONS

MATERIAL Aluminum
THICKNESS (INCH/MM) 0.030/0.76
EFFECTIVE DIAMETER (INCH/MM) 4.25/107.9

OPERATING CHARACTERISTICS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING TEMPERATURE RANGE °C 25 to 85
MAXIMUM OPERATING VOLTAGE (VOLTS) 800
GAMMA SENSITIVITY (A/R/HR - CO60) 2.2E-9
RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) >1.0E13
RESISTANCE - CATHODE TO GUARD (OHMS) >1.0E12
