50366
High pressure gamma ionization chamber

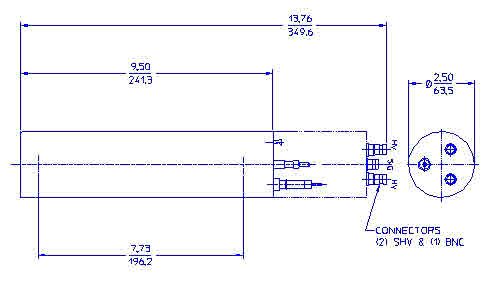

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
13.77/349.6 |
| MAXIMUM DIAMETER (INCH/MM) |
2.5/63.5 |
| EFFECTIVE LENGTH (INCH/MM) |
7.73/196.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| FILL GAS |
Argon |
| FILL PRESSURE (TORR) |
855 |
| EFFECTIVE VOLUME (CM³) |
570.0 |
| OUTER CASING MATERIAL |
Stainless Steel |
| ANODE CONNECTOR |
BNC |
| CATHODE CONNECTOR |
SHV (2) |
| GUARD CONNECTOR |
N/A |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
600 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
3.5E-11 |
| RESISTANCE - HV ELECTRODE TO SHELL (OHMS) |
>1.0E12 |
| RESISTANCE - SIGNAL ELECTRODE TO SHELL (OHMS) |
>1.0E13 |
