50342
High pressure gamma ionization chamber

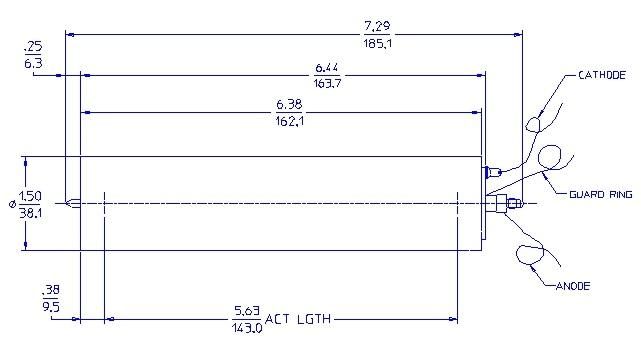

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.29/185.17 |
| MAXIMUM DIAMETER (INCH/MM) |
1.5/38.1 |
| EFFECTIVE LENGTH (INCH/MM) |
5.63/143.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Ar 75% - N2 25% |
| FILL PRESSURE (TORR) |
11400 |
| EFFECTIVE VOLUME (CM³) |
160.0 |
| OUTER CASING MATERIAL |
N/A |
| ANODE CONNECTOR |
Flying Lead |
| CATHODE CONNECTOR |
Flying Lead |
| GUARD CONNECTOR |
Flying Lead |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
1.6E-10 |
| RESISTANCE - SIGNAL ELECTRODE TO CATHODE (OHMS) |
>1.0E13 |
| RESISTANCE - GUARD ELECTRODE TO CATHODE (OHMS) |
>1.0E9 |
