50316

General Specifications

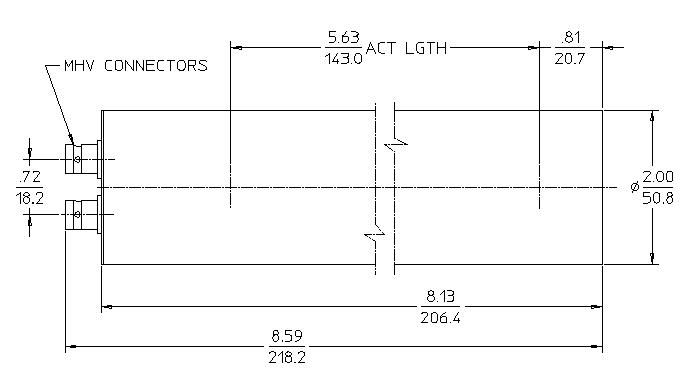

MAXIMUM LENGTH (INCH/MM) 8.59/218.2
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 5.63/143.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
FILL GAS Xenon
FILL PRESSURE (TORR) 7600
EFFECTIVE VOLUME (CM³) 160.0
OUTER CASING MATERIAL Stainless Steel
ANODE CONNECTOR MHV
CATHODE CONNECTOR MHV
GUARD CONNECTOR N/A

Operating Characteristics

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING TEMPERATURE RANGE °C -50 to +100
MAXIMUM OPERATING VOLTAGE (VOLTS) 2000
GAMMA SENSITIVITY (A/R/HR - CO60) 6.5E-10
RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) >1.0E13
RESISTANCE - CATHODE TO GUARD (OHMS) >1.0E13
