78016

General Specifications

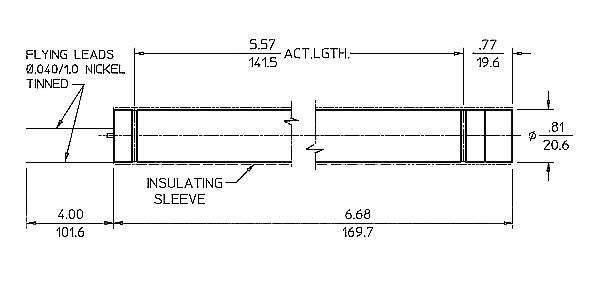

MAXIMUM LENGTH (INCH/MM) 6.68/169.7
MAXIMUM DIAMETER (INCH/MM) 0.81/20.6
GAS FILLING Ne +Halogen
EFFECTIVE LENGTH (INCH/MM) 5.57/141.5
CATHODE MATERIAL (INTERNAL/EXTERNAL) 446 Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.786/20.0
CONNECTOR Flying Lead
OPERATING TEMPERATURE RANGE °C -40 to +75

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500

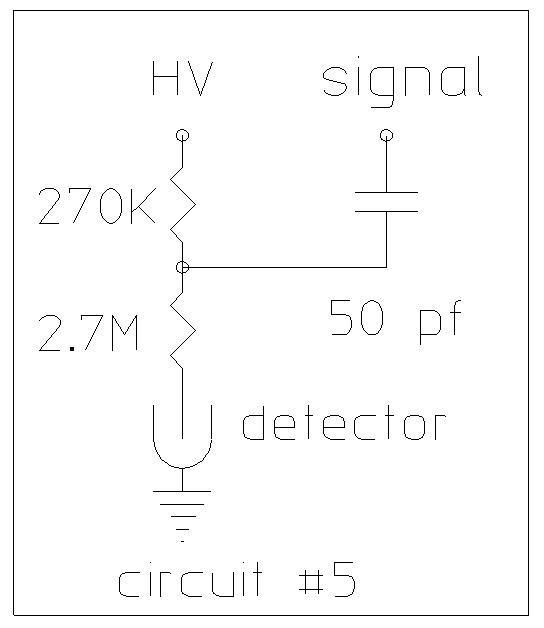

RECOMMENDED ANODE RESISTOR (MEG OHM) 3.3
OPERATING VOLTAGE RANGE (VOLTS) 450 - 650
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 10
MINIMUM DEAD TIME (MICRO SEC) 150
GAMMA SENSITIVITY CO60 (CPS/MR/HR) 90
TUBE CAPACITANCE (PF) 3
WEIGHT (GRAMS) 85
MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 70
MAXIMUM STARTING VOLTAGE (VOLTS) 400
MINIMUM ANODE RESISTOR (MEG OHM) 2.7
