7437

General Specifications

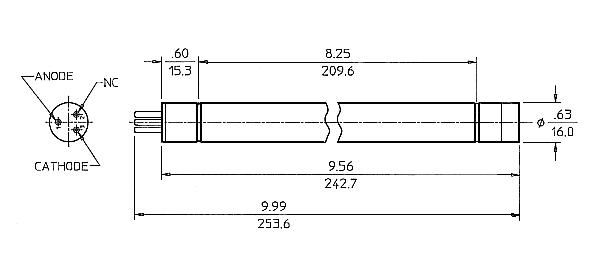

MAXIMUM LENGTH (INCH/MM) 9.5/241.3
MAXIMUM DIAMETER (INCH/MM) 0.63/16.0
GAS FILLING Ne +Halogen
EFFECTIVE LENGTH (INCH/MM) 8.25/209.5
CATHODE MATERIAL (INTERNAL/EXTERNAL) 446 Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.61/15.5
CONNECTOR Jedec A3-1
OPERATING TEMPERATURE RANGE °C -55 to +150

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 900
RECOMMENDED ANODE RESISTOR (MEG OHM) 4.7
OPERATING VOLTAGE RANGE (VOLTS) 850 - 1200
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 8
MINIMUM DEAD TIME (MICRO SEC) 100
GAMMA SENSITIVITY CO60 (CPS/MR/HR) 80
TUBE CAPACITANCE (PF) 3
MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 50
MAXIMUM STARTING VOLTAGE (VOLTS) 775
