73127
Multi-Window Alpha/Beta/Gamma Detector
GENERAL SPECIFICATIONS
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| GAS FILLING |
Ne + Halogen Admixture |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |

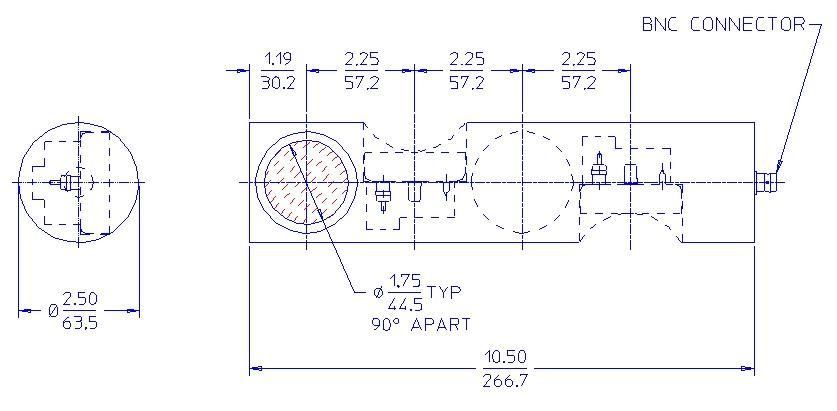

| EFFECTIVE LENGTH (INCH/MM) |
7.0/177.8 |
| MAXIMUM DIAMETER (INCH/MM) |
2.38/60.3 |
| CONNECTOR |
BNC |
WINDOW SPECIFICATIONS
| AREAL DENSITY (MG/CM²) |
1.5 - 2.0 |
| EFFECTIVE DIAMETER (INCH/MM) |
1.75/44.5 |
| MATERIAL |
Mica |
| QUANTITY (90° APART) |
4 |
ELECTRICAL SPECIFICATIONS
| MAXIMUM STARTING VOLTAGE (VOLTS) |
425 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
120 |

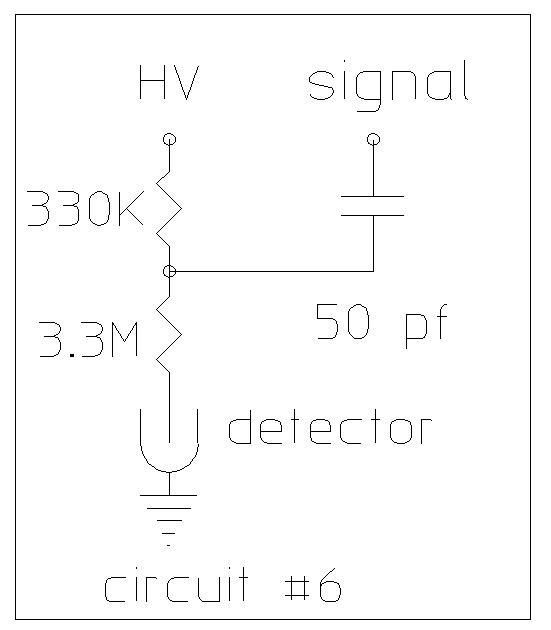

| RECOMMENDED ANODE RESISTOR (MEG OHM) |
3.3 |
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| CAPACITANCE (PF) |
4 |
| OPERATING VOLTAGE RANGE (VOLTS) |
475-675 |
| MINIMUM DEAD TIME (MICRO SEC) |
40 |
| pa_gamma-sensitivity-co60 |
|
| WEIGHT (GRAMS) |
600 |
