72527

General Specifications

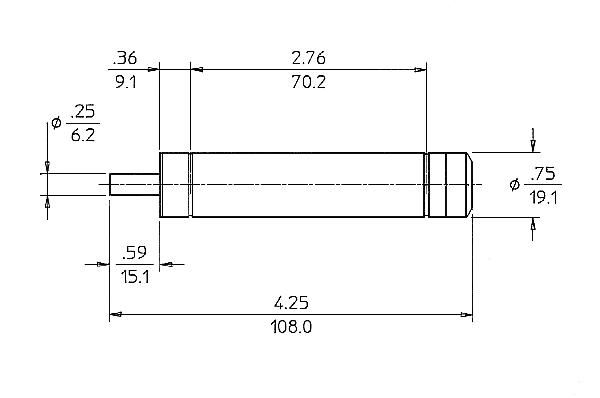

MAXIMUM LENGTH (INCH/MM) 4.24/108.0
MAXIMUM DIAMETER (INCH/MM) 0.75/19.1
GAS FILLING He + Organic
EFFECTIVE LENGTH (INCH/MM) 2.76/70.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 0.736/18.7
CONNECTOR Grid Cap
OPERATING TEMPERATURE RANGE °C -30 to +75

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 900
RECOMMENDED ANODE RESISTOR (MEG OHM) 1
OPERATING VOLTAGE RANGE (VOLTS) 850-1000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 4
MINIMUM DEAD TIME (MICRO SEC) 200

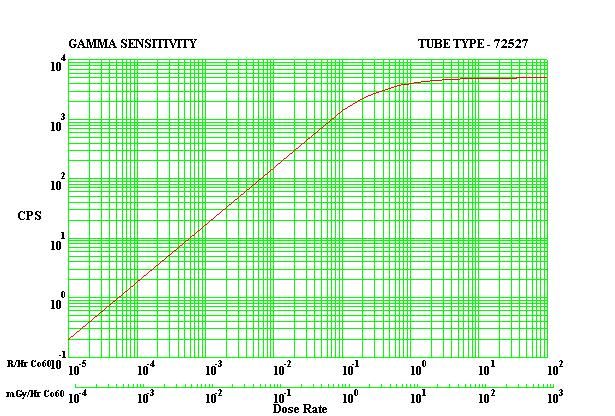

GAMMA SENSITIVITY CO60 (CPS/MR/HR) 40
TUBE CAPACITANCE (PF) 4
WEIGHT (GRAMS) 20
MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 40
MAXIMUM STARTING VOLTAGE (VOLTS) 800

Wall Specifications

THICKNESS (INCH/MM) 0.007/0.178
AREAL DENSITY (MG/CM²) 47.8
