72329
Gamma detector
General Specifications

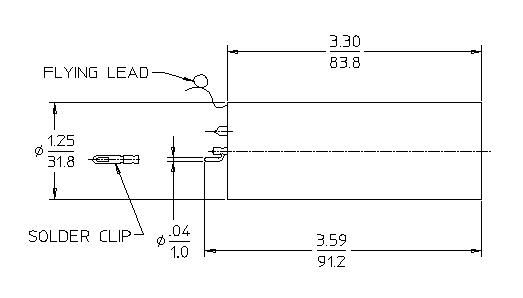

| MAXIMUM LENGTH (INCH/MM) |
3.59/91.2 |
| MAXIMUM DIAMETER (INCH/MM) |
1.25/31.8 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
3.0/76.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| CONNECTOR |
Solder Clip |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |

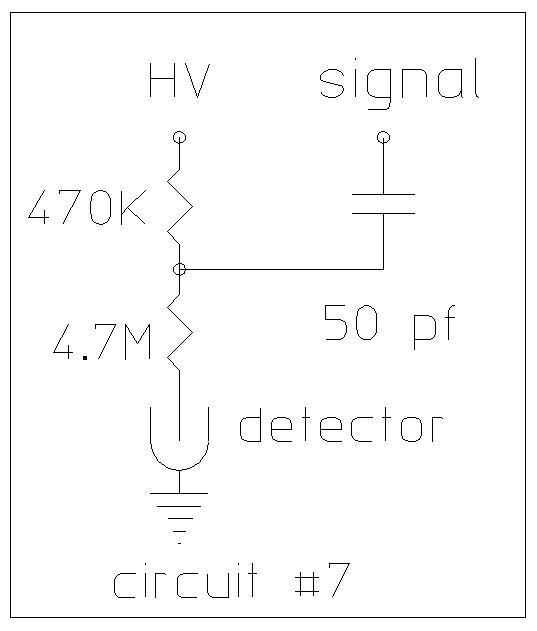

| RECOMMENDED ANODE RESISTOR (MEG OHM) |
4.7 |
| OPERATING VOLTAGE RANGE (VOLTS) |
450 - 700 |
| MINIMUM DEAD TIME (MICRO SEC) |
230 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
50 |
| TUBE CAPACITANCE (PF) |
3 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
25 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
390 |

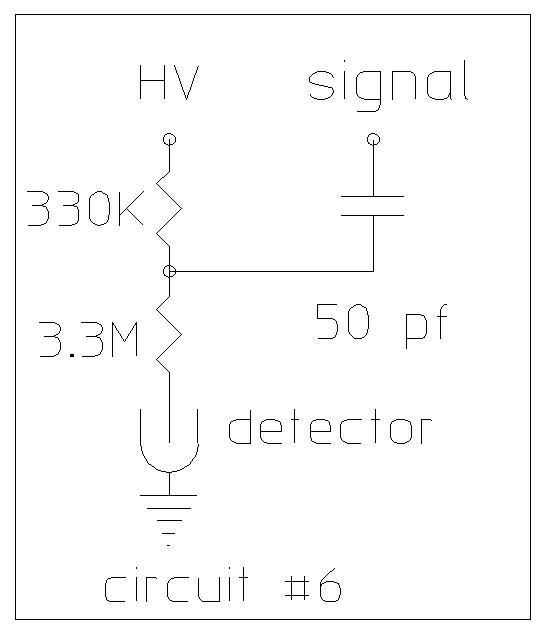

| MINIMUM ANODE RESISTOR (MEG OHM) |
3.3 |
