71641
Gamma detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
0.97/24.5 |
| MAXIMUM DIAMETER (INCH/MM) |
0.20/5.2 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
0.25/6.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.19/4.83 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |

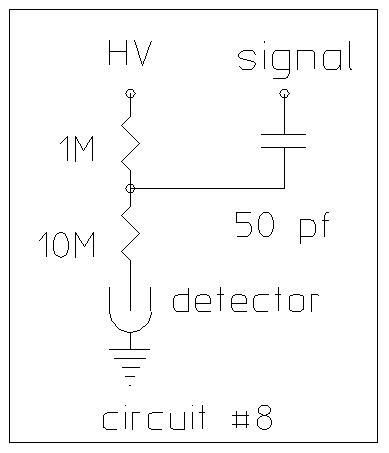

| RECOMMENDED ANODE RESISTOR (MEG OHM) |
10 |
| OPERATING VOLTAGE RANGE (VOLTS) |
475-600 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
35 |
| MINIMUM DEAD TIME (MICRO SEC) |
13 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
0.2 |
| TUBE CAPACITANCE (PF) |
3 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
1 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
450 |
| MINIMUM ANODE RESISTOR (MEG OHM) |
3.3 |
