71218

General Specifications

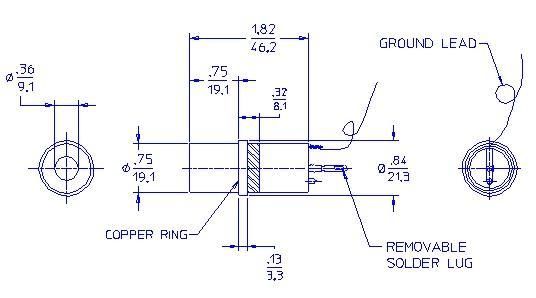

MAXIMUM LENGTH (INCH/MM) 1.82/46.2
MAXIMUM DIAMETER (INCH/MM) 0.84/21.4
GAS FILLING Ne +Halogen
EFFECTIVE LENGTH (INCH/MM) 1.5/38.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) 446 Stainless Steel
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C -10 to +75

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 900

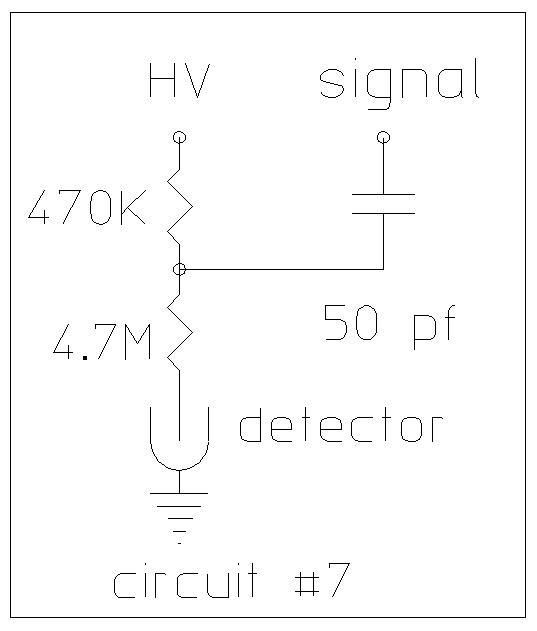

RECOMMENDED ANODE RESISTOR (MEG OHM) 4.7
OPERATING VOLTAGE RANGE (VOLTS) 850-1000
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 10
MINIMUM DEAD TIME (MICRO SEC) 90
GAMMA SENSITIVITY CO60 (CPS/MR/HR) 16
TUBE CAPACITANCE (PF) 3
MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 10
MAXIMUM STARTING VOLTAGE (VOLTS) 800

Filter Specifications

MATERIAL Sn
THICKNESS (INCH/MM) 0.08/2.0

Wall Specifications

THICKNESS (INCH/MM) 0.012/0.30
AREAL DENSITY (MG/CM²) 216
