71010

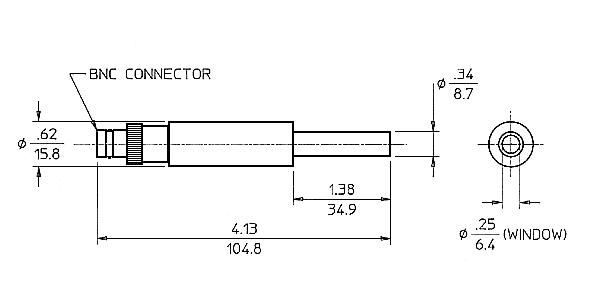

GENERAL SPECIFICATIONS

MAXIMUM LENGTH (INCH/MM) 4.13/104.8
MAXIMUM DIAMETER (INCH/MM) 0.62/15.8
GAS FILLING Ne +Halogen
EFFECTIVE LENGTH (INCH/MM) 1.5/38.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) 446 Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.25/6.4
CONNECTOR BNC
OPERATING TEMPERATURE RANGE °C -40 to +75

WINDOW SPECIFICATIONS

MATERIAL Mica
EFFECTIVE DIAMETER (INCH/MM) 0.25/6.4
AREAL DENSITY (MG/CM²) 1.5 - 2.0

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
RECOMMENDED ANODE RESISTOR (MEG OHM) 3.3
OPERATING VOLTAGE RANGE (VOLTS) 450 - 650
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 10
MINIMUM DEAD TIME (MICRO SEC) 50
GAMMA SENSITIVITY CO60 (CPS/MR/HR) 10
TUBE CAPACITANCE (PF) 3
WEIGHT (GRAMS) 25
MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 10
MAXIMUM STARTING VOLTAGE (VOLTS) 400
