70510

GENERAL SPECIFICATIONS

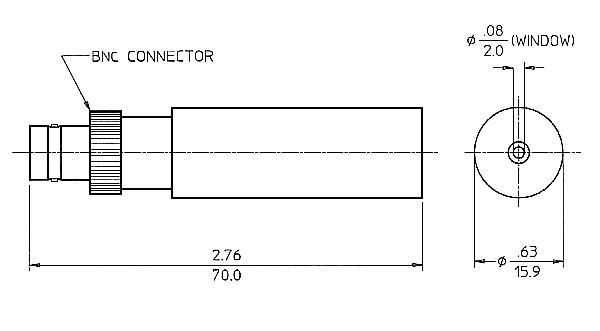

MAXIMUM LENGTH (INCH/MM) 3.0/76.2
MAXIMUM DIAMETER (INCH/MM) 0.62/15.8
GAS FILLING Ne +Halogen
EFFECTIVE LENGTH (INCH/MM) 0.25/6.35
CATHODE MATERIAL (INTERNAL/EXTERNAL) 446 Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.08/2.0
CONNECTOR BNC
OPERATING TEMPERATURE RANGE °C -40 to +75

WINDOW SPECIFICATIONS

MATERIAL Mica
EFFECTIVE DIAMETER (INCH/MM) 0.08/2.0
AREAL DENSITY (MG/CM²) 0.3 - 0.4

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500

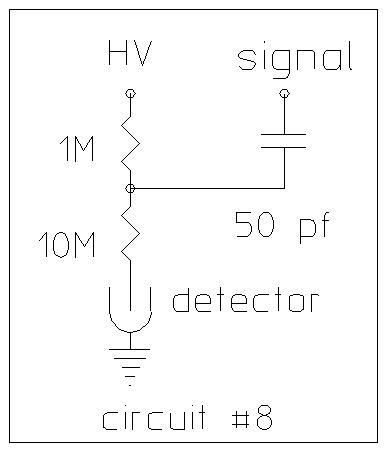

RECOMMENDED ANODE RESISTOR (MEG OHM) 10
OPERATING VOLTAGE RANGE (VOLTS) 450 - 600
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 15
MINIMUM DEAD TIME (MICRO SEC) 25
GAMMA SENSITIVITY CO60 (CPS/MR/HR) 0.5
TUBE CAPACITANCE (PF) 3
WEIGHT (GRAMS) 6
MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 5
MAXIMUM STARTING VOLTAGE (VOLTS) 400
